How to invite external users to a SharePoint site or Microsoft Team using Power Automate and Graph API

SharePoint and Microsoft teams services in Microsoft 365 makes it easier to share content or collaborate with external users who is outside your organization. A guest or external user is someone who do not have a school or work account with your organization, they can be your partner, vendor, customer etc. In this article let us see how to build a self-registration experience for external users with the help of Microsoft Forms & Power Automate to onboard them to a

  • SharePoint online site
  • Microsoft Team

Microsoft Form to collect details from External User:

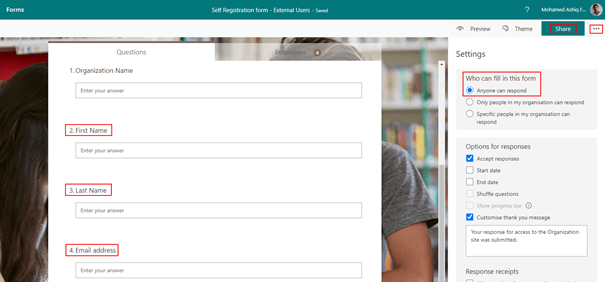

To start building this experience, create a Microsoft form with the setting Anyone can respond and with fields (Name, Email address etc) to collect information from the external user to send invitation.

Azure Active Directory Application registration:

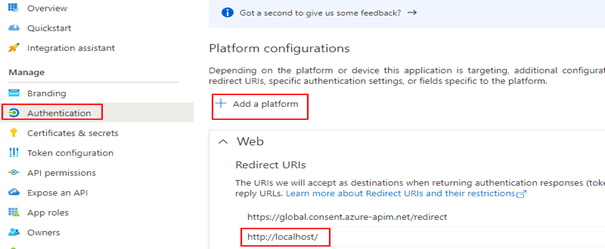

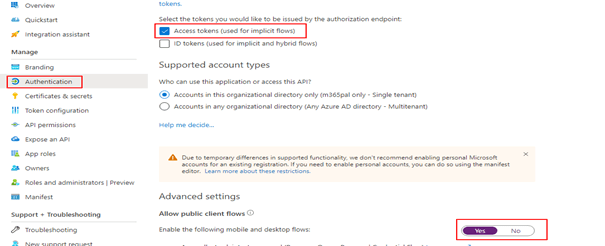

The next step after creating the form is to register an application in Azure AD with Microsoft graph API permission to send invitation to external user. After the app is registered obtain the client id, client secret & tenant id to be used in the Power Automate flow further down this article to generate the JSON webtoken to access Microsoft Graph API for sending invitation. Find below screenshot with the permission User.Invite.All added to the app. Keep in mind the permission requires Admin consent.

There is also delegated permission available for User.Invite.All.

Onboard External users to a SharePoint online site:

Once the Microsoft form is ready, we can start building the Power Automate flow which can send the email invitation to the external user and for granting access to the SharePoint site. The external sharing features of SharePoint Online enables users in your organization share content with people outside the organization. There is no limit to the number of guests you can invite to SharePoint sites as per this SharePoint online limits documentation. Find below steps to create the Power Automate flow with a custom approval on a Microsoft Team

Power Automate Flow:

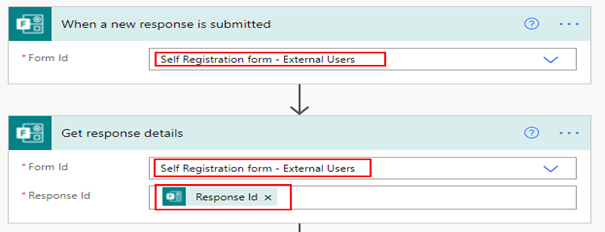

Create an Automated flow with the trigger When a new response is submitted with the above form name selected on the dropdown and then add the action Get response details with the Response Id selected from the dynamic content for the trigger to get the form details submitted in the Microsoft form by the external user. Find screenshot below

Adaptive card for Teams Approval:

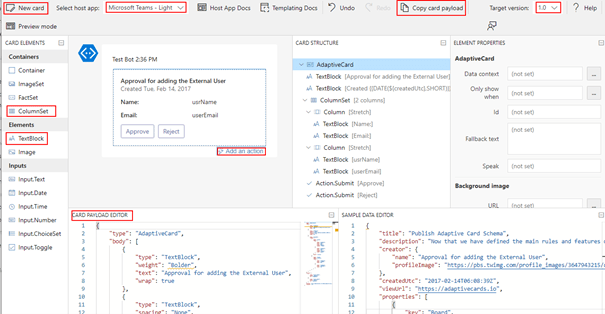

For the Approval in Microsoft Teams, I have used a custom card created from the Adaptive card designer with elements ColumnSet, TextBlock to display information submitted in the form & action button Approve and Reject to take further action by a Microsoft teams user to proceed with Invitation for the Guest account creation. Find screenshot below from the adaptive card designer

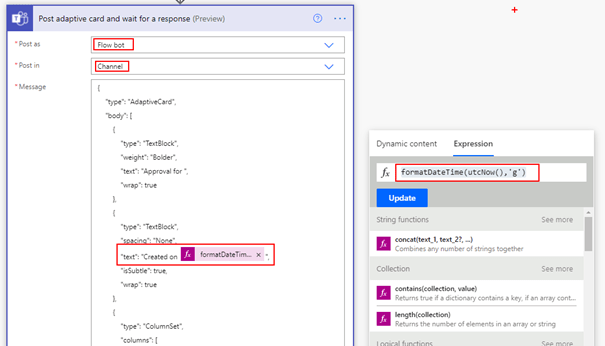

  1. After the card is designed, copy the card payload from the designer and go to the flow and then add the action Post adaptive card and wait for a response and make appropriate selection on the available fields as shown below
    • Post as: Flow bot
    • Post in: Channel
    • Message: Payload copied from designer. Replace the fields for usrName & userEmail selected from the dynamic content from the outputs of the action Get response details. The created on textBlock element has the flow expression formatDateTime(utcNow(),’g’) to display the current datetime information on the card.
  • Update Message: Custom message which appear after an action taken in Microsoft Teams
  • Team: Select the Team where you would like to post the card
  • Channel: Select the channel from the Microsoft Team where you would like to have the approval adaptive card posted

Card payload:

{
    "type": "AdaptiveCard",
    "body": [
        {
            "type": "TextBlock",
            "weight": "Bolder",
            "text": "Approval for adding the External User",
            "wrap": true
        },
        {
            "type": "TextBlock",
            "spacing": "None",
            "text": "Created Add flow expression to get current date",
            "isSubtle": true,
            "wrap": true
        },
        {
            "type": "ColumnSet",
            "columns": [
                {
                    "type": "Column",
                    "items": [
                        {
                            "type": "TextBlock",
                            "text": "Name:",
                            "wrap": true,
                            "size": "Medium",
                            "weight": "Bolder"
                        },
                        {
                            "type": "TextBlock",
                            "text": "Email:",
                            "wrap": true,
                            "weight": "Bolder",
                            "size": "Medium"
                        }
                    ],
                    "width": "stretch"
                },
                {
                    "type": "Column",
                    "width": "stretch",
                    "items": [
                        {
                            "type": "TextBlock",
                            "text": "usrName-Replace it from Microsoft Form",
                            "wrap": true
                        },
                        {
                            "type": "TextBlock",
                            "text": "userEmail-Replace it from Microsoft Form ",
                            "wrap": true
                        }
                    ]
                }
            ]
        }
    ],
    "actions": [
        {
            "type": "Action.Submit",
            "title": "Approve",
            "id": "btnApprove"
        },
        {
            "type": "Action.Submit",
            "title": "Reject",
            "id": "btnReject"
        }
    ],
    "$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
    "version": "1.0"
}

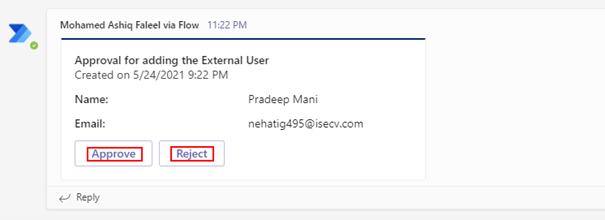

  1. The above adaptive card is used to get approval from the Organization teams user based on the information submitted by the external user in the Microsoft form to proceed with the next steps for sending the guest account invite. Now we will have to identify if the user has clicked the button Approve or Reject. This information can be easily obtained from the Outputs of the action.

Note: Adaptive card can also be sent using a Microsoft Graph API with the card payload in Attachments field

Adaptive card for Teams – Dynamic content Missing:

As of the time I am writing this article there is an issue in getting the output as dynamic content for the Post adaptive card and wait for a response action if there is dynamic content added on the JSON Payload (Name, Email from Forms). The fix is to run the flow till the post adaptive card action and take an action on Microsoft teams by clicking either Approve or Reject and then go to the Flow run from the history as shown below

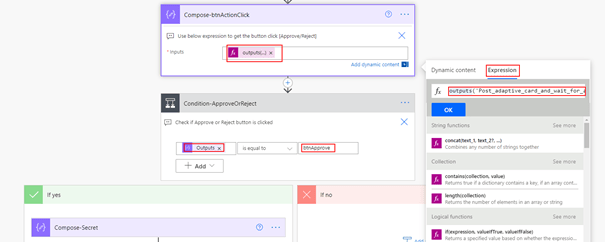

From the above screenshot, we can see if the user has clicked the Approve or Reject button from the field submitActionId. To get this value in Flow, use the expression

outputs('Post_adaptive_card_and_wait_for_a_response').body.submitActionId

or

@outputs('Post_adaptive_card_and_wait_for_a_response')?['body/submitActionId']

Spaces in the name of the action is replaced with underscore.

To get the userPrincipalName, the expression is

outputs('Post_adaptive_card_and_wait_for_a_response').body.responder.userPrincipalName

or

@outputs('Post_adaptive_card_and_wait_for_a_response')?['body/responder/userPrincipalName']

To get the submitActionId, enter the expression outputs(‘Post_adaptive_card_and_wait_for_a_response’).body.submitActionId in the compose action, then add a condition control to decide action based on users approval

I have observed this issue occurs in other team’s adaptive card actions as well, the above fix should work. Now we can implement the logic to send the Guest Invitation using Microsoft Graph API. To send the invite, we will use the Azure AD application registered above.

Generate JSON Web token to Access Graph API:

Be ready with the ClientId, Client Secret and Tenant Id collected from the AD app registration you have done initially. The only authentication flow to generate a access token for application permissions is Client credentials.

To generate a token

  1. Store the Client Secret on a String variable or a compose action
  2. Make a HTTP request using the HTTP connector with the following details. Make sure to replace the string for tenantId, azureAdAppclientId and azureAdAppclientSecret

Add a HTTP connector action to the flow for making a POST request per the following information

HTTP Method: POST

URI: https://login.microsoftonline.com/yourtenantId/oauth2/v2.0/token

Headers: Content-Type: application/x-www-form-urlencoded

Body:

tenant=yourtenantId&client_id=azureAdAppclientId&client_secret=@{decodeUriComponent(variables('azureAdAppclientSecret'))}&grant_type=client_credentials&scope=https://graph.microsoft.com/.default

For the client secret make sure to URL encode using the expression encodeUriComponent(variables(‘clientSecret’)) else the request may fail due to the presence of special characters.

In the above screen, I have added a compose action to store the SharePoint site address to be used for granting the external user access to. To extract the token from the above request, add the parse JSON action with Content from the HTTP request body and the following schema

{
    "type": "object",
    "properties": {
        "token_type": {
            "type": "string"
        },
        "scope": {
            "type": "string"
        },
        "expires_in": {
            "type": "integer"
        },
        "ext_expires_in": {
            "type": "integer"
        },
        "access_token": {
            "type": "string"
        },
        "refresh_token": {
            "type": "string"
        }
    }
}

Include the access token when calling the Microsoft Graph API in the Headers section or raw as shown in the next section.

Send Invitation using Microsoft Graph API:

Before sending the invitation, validate if the user already exists in your organization AD tenant by using the email address of the external user with the help of the action Search for users as shown below

If there is null response for the action Search for users, then the user does not exist. This can be calculated using the expression length and by passing the value as a parameter, if it is equals zero then the external user does not exist. If the user already exists, we can directly proceed to granting the external user access to SharePoint.

Graph API to check if a guest user already exists:

https://graph.microsoft.com/v1.0/users?$filter=UserType eq ‘Guest’&$filter=mail eq exteruseremailaddress@domain.com’

or

https://graph.microsoft.com/v1.0/users?$filter=startswith(mail,’exteruseremailaddress@domain.com’)

Find below the Graph API endpoint http request details to invite the external user

Method: POST

URL: https://graph.microsoft.com/v1.0/invitations

Request Body:

{
  "invitedUserDisplayName": "External User Name",
  "invitedUserEmailAddress": "External User Email Address",
  "sendInvitationMessage": true,
  "inviteRedirectUrl": "SharePoint site URL or any URL",
  "invitedUserMessageInfo": {
    "messageLanguage": "en-US",
    "customizedMessageBody": "Welcome to the M365PAL SharePoint site! Click the link below and sign in."
  }
}

In HTTP request body, use the dynamic content of the form to populate the fields invitedUserDisplayName & Emailaddress. The invite redirectUri is the output of the compose action which has the SharePoint site url. I have added a delay of one minute before granting access to SharePoint site for the external user, this step is to make sure there is an entry in Azure AD for the external user/guest account.

Custom connector can be used for calling the Graph API for sending invitations instead of using HTTP connector, you can refer to the post Call Microsoft Graph API in Power Apps and Power Automate using a Custom connector for detailed instructions.

Grant Access to SharePoint site for the external user:

As soon as the guest account invite is sent from the above Microsoft graph API request HTTP action, it is time to grant access to the SharePoint site for the external user. There is a SharePoint REST API endpoint to add a user to a SharePoint group (Owners, Member, Visitors), find below the request details

Request URL: https://tenantname.sharepoint.com/sites/siteName/ _api/web/sitegroups/GetById(groupId)/users

For the groupId to the corresponding SharePoint group, refer to the following table

SharePoint GroupGroupId
Owners3
Members5
Visitors4

Headers:

Key: accept value: application/json;odata.metadata=none

Key: content-type value: application/json

Body:

{'LoginName':'i:0#.f|membership|userPrinipalNameorEmailaddressofExternalUser'}

For the external user, the email address used to send the invite works.

Go back to the flow and add the action Send an HTTP request to SharePoint to call the above REST api. Find below the screenshot of the action

The above action uses delegated permission, the user of the connection should have access to the SharePoint site. As of now, there is no Graph API for adding the user to a SharePoint group but you can register an app in Active directory and add permission for SharePoint to call the above REST API. Refer to the documentation Granting access via Azure AD App-Only for calling the REST API using the registered AD app.

Testing the flow:

The whole flow can now be tested by submitting the form which sends the adaptive card on Teams first as shown below

After the card is approved, the invite is sent to the external user. After the external user accepts the invite, the user should be automatically redirected to the SharePoint site with the appropriate access. The access to the SharePoint site for the external user can be validated by the checking the membership of the SharePoint group in the site even before the user accepts the invitation. The site members can also be validated by accessing the URL for All users list:

https://tenantName.sharepoint.com/sites/siteName/_layouts/15/people.aspx?MembershipGroupId=0

This approach of granting access to SharePoint site for external user can be applied to internal users by turning off the access requests.

Limit External Sharing by domain:

The external sharing on SharePoint can be restricted based on domain of the external user. To enable the setting login into the SharePoint admin center > Policies > Sharing > Enable the checkbox Limit external sharing by domain > Add domain

Onboard External users to a Microsoft Team:

To onboard the external user to a Microsoft Team, the only change to the above flow is, instead of adding the user to the SharePoint group the user must be added as a Member to the Microsoft 365 group connected to the Microsoft Teams. The graph API to add a member to a Microsoft Team is

Request Type: POST

Request URL: https://graph.microsoft.com/v1.0/teams/{team-id}/members

The team-id is the Microsoft 365 group object Id, as there is always a Microsoft 365 group connected to a Microsoft Team.

Body:

{
    "@odata.type": "#microsoft.graph.aadUserConversationMember",
    "roles": ["owner"],
    "user@odata.bind": "https://graph.microsoft.com/v1.0/users(userObjectIdofGuest')"
}

The expression to get the user object Id of the external user as per the below screenshot is

outputs(‘HTTP-SendGuestInvitation’).body.invitedUser.Id The expression can be used in a compose action to get the Object Id of the external user which can be used in the Graph API request to add the member to a Team. HTTP-SendGuestInvitation is the name of the HTTP Action.

Permission for the Azure AD App to add a member to a Microsoft Team:

The application permission Group.ReadWrite.All has to be added on the Azure AD app, if you are going to be using the same JSON webtoken generated above. There is delegated permission as well for adding members.

https://graph.microsoft.com/Group.ReadWrite.All

I recommend you read the following documentation from Microsoft for External sharing

https://docs.microsoft.com/en-us/microsoftteams/manage-external-access

https://docs.microsoft.com/en-us/microsoftteams/guest-access

https://docs.microsoft.com/en-us/microsoftteams/communicate-with-users-from-other-organizations

https://docs.microsoft.com/en-us/microsoft-365/community/managing-external-guest-in-sharepoint-vs-teams

Summary: With this, the Power Automate flow should send the invitation as shown below to the external user.

If it is for a Microsoft Team, the external user should be licensed for teams service to open it on their teams client. The same flow can be also configured for Microsoft 365 group. If you are visiting my blog for the first time, please do look at my other blogposts.

Cancel all your running Power Automate flow runs using M365 CLI and REST API

This blog post is in continuation to my previous one Resubmit your failed Power Automate flow runs automatically using M365 CLI and REST API, in this blog post let us see how to cancel all your running flow runs using

  • CLI for Microsoft 365
  • Power Automate REST API

CLI for Microsoft 365:

Microsoft 365 CLI helps you manage configuration settings of Microsoft 365 tenant and its various services like SharePoint, Power Automate, Power Apps, Microsoft Graph etc and to build automation scripts on any platform. Refer to this post Resubmit your failed Power Automate flow runs automatically using M365 CLI and REST API for the steps to execute & to get started with M365 CLI commands. Find below the cmdlet to cancel a flow run

 CLI cmdlet to cancel a Flow Run:

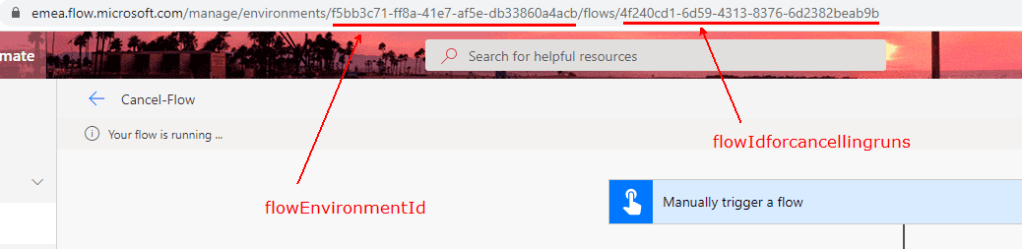

Replace the flowEnvironmentID, flowGUID & flowRunID

m365 flow run cancel --environment flowEnvironmentID --flow flowGUID --name flowRunID –confirm

You can run the M365 CLI commands stored in a file like PowerShell cmdlets. Find below the M365 CLI cmdlets stored in a PowerShell file (.ps1) to cancel the running flow runs automatically.

$flowEnvironment=$args[0]
$flowGUID=$args[1]
$flowRuns = m365 flow run list --environment $flowEnvironment --flow $flowGUID --output json | ConvertFrom-Json
foreach ($run in $flowRuns)
{
    if($run.status -eq "Running")
	{
		Write-Output "Run details: " $run
		# Cancel all the running flow runs
		m365 flow run cancel --environment $flowEnvironment --flow $flowGUID --name $run.name --confirm
		Write-Output "Run Cancelled successfully"
	}
}

The above script stored in file with .ps1 extension can be executed as shown below on the Power Shell command line by passing the Flow Environment ID and the Flow ID in the command line

PS C:\Script> ./flowReSubmitRunPnPCLI.ps1 flowEnvironmentId flowIdforcancellingruns

Find below screenshot after running the script

Power Automate REST API:

There are Power Automate REST API endpoints to list the Flow Runs and to cancel a run. Go through the following blog post for more information on how access the Power Automate REST API endpoints

Everything to know about Power Automate REST API to manage your flows

The above-mentioned blogpost will help you to call the following Power Automate REST APIs from a custom connector and programmatically from other applications.

API Endpoint to list flow runs:

GET https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/{FlowEnvironment}/flows/{FlowGUID}/runs?api-version=2016-11-01

Endpoint to cancel a flow run:

POST https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/{FlowEnvironment}/flows/{FlowGUID}/triggers/manual/histories/{FlowRunID}/cancel?api-version=2016-11-01

Summary: I would recommend getting familiar with Microsoft 365 CLI which has various cmdlets to make your job easier. The syntax of all commands is well documented with examples. Hope you have found this informational & thanks for reading. If you are visiting my blog for the first time, please do look at my other blogposts.

Resubmit your failed Power Automate flow runs automatically using M365 CLI and REST API

Have you ever been forced to resubmit lot of failed Power Automate flow runs manually, if so this blog post will help you to automatically resubmit the flow runs using

  • CLI for Microsoft 365
  • Power Automate REST API

CLI for Microsoft 365:

Microsoft 365 CLI helps you manage configuration settings of Microsoft 365 tenant and its various services like SharePoint, Power Automate, Power Apps, Microsoft Graph etc and to build automation scripts on any platform.

Getting started: The CLI for Microsoft 365 is available and distributed as an NPM package. To use it, install it globally using:

npm i -g @pnp/cli-microsoft365

To install the beta version

npm i -g @pnp/cli-microsoft365@next

To update to the latest stable version

@pnp/cli-microsoft365@latest

Next, login to Microsoft 365 CLI using the following command.

m365 login

You will be presented with a code and a login URL https://microsoft.com/devicelogin, navigate to the URL and enter the code > Sign-in using the Microsoft 365 work account. The above command uses device code flow to authenticate and authorize the user through an Azure Active directory app PnP Management Shell. If you are accessing M365 CLI for the first time, you may have to consent for permissions. After the sign-in process is completed, you can enter various commands available within Microsoft 365 CLI.

Let us start with a basic command to list all Power Automate environments in your Tenant

m365 flow environment list

You can try the various cmdlets available as shown in the below screenshot with in Microsoft 365 CLI from the following url

https://pnp.github.io/cli-microsoft365/cmd/flow/flow-list/

CLI cmdlet to List all Flow Runs:

Replace the flowEnvironmentID & flowGUID pertaining to yours

m365 flow run list --environment flowEnvironmentID --flow flowGUID --output json

The above command lists all runs details. It provides information like status (Failed, Successful), run ID, run start time etc

CLI cmdlet to Resubmit a Flow Run:

Replace the flowEnvironmentID, flowGUID & flowRunID

m365 flow run resubmit --environment flowEnvironmentID --flow flowGUID --name flowRunID –confirm

There are cmdlets which accepts JMESPath to query. You can run the M365 CLI commands stored in a file like PowerShell cmdlets. Find below the M365 CLI cmdlets stored in a PowerShell file (.ps1) to resubmit the failed flows automatically.

$flowEnvironment=$args[0]
$flowGUID=$args[1]
$flowRuns = m365 flow run list --environment $flowEnvironment --flow $flowGUID --output json | ConvertFrom-Json
foreach ($run in $flowRuns)
{
    if($run.status -eq "Failed")
	{
		Write-Output "Run details: " $run
		#Resubmit all the failed flows
		m365 flow run resubmit --environment $flowEnvironment --flow $flowGUID --name $run.name --confirm
		Write-Output "Run resubmitted successfully"
	}
}

The above script stored in a file can be executed as shown below by passing the Flow Environment ID and the Flow ID in the command line

You can modify the script to Resubmit flow run according to your requirement, for e.g. within a certain date range since there is information on the run start date. There are sample scripts available in the github repo for M365 CLI submitted by community members

https://pnp.github.io/cli-microsoft365/sample-scripts/

Power Automate REST API:

There are Power Automate REST API endpoints to list the Flow Runs and to re-submit a run. Go through the following blog post for more information on how access the Power Automate REST API endpoints

Everything to know about Power Automate REST API to manage your flows

The above-mentioned blogpost helps you to call the following Power Automate REST APIs from a custom connector and programmatically from other applications.

API Endpoint to list flow runs:

GET https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/{FlowEnvironment}/flows/{FlowGUID}/runs?api-version=2016-11-01

Endpoint to Resubmit a flow run:

POST https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/{FlowEnvironment}/flows/{FlowGUID}/triggers/manual/histories/{FlowRunID}/resubmit?api-version=2016-11-01

In a Power Automate flow, you can get the flow run details using the following expression.

workflow()

Find below test result of a flow run using the expression workflow() on the compose action which has the runid and other details of the flow run.

With these possibilities you can automatically resubmit a failed flow run (time out, failure due to config change etc) if the details of the failed flows are logged somewhere.

There is also PowerShell support for Power Platform, do look at the following documentation to get to know the list of available cmdlets:

https://docs.microsoft.com/en-us/power-platform/admin/powerapps-powershell#cmdlet-list—maker-cmdlets

Cmdlet Get-FlowRun, gets all the flow runs of a particular flow.

Summary: I would recommend getting familiar with Microsoft 365 CLI which has various cmdlets to make your job easier. The syntax of all commands is well documented with examples. Hope you have found this informational & thanks for reading. If you are visiting my blog for the first time, please do look at my other blogposts.

Everything to know about Power Automate REST API to manage and administer your flows

Power Automate Management connector enables interaction with Power Automate management service to manage your flows with different actions to create, edit and update flows. If you want to do more but you were not able to find an action with this connector for e.g. get details on the Runs the flow has made, as of now there is no action which gets the run details of a flow with the Power Automate Management connector. So how to get the Runs the flow has made and even more actions like turning on/off/disable a flow etc? There are REST APIs with different endpoints for Power Automate, as of now there is no documentation from Microsoft on these API’s but there is documentation for Azure Logic Apps REST API. It is quite easy to convert the Logic Apps REST API for Power Automate operations. The APIs are secured with Azure AD OAuth 2.0, in this blog post let’s see how to call these API’s using

  1. Custom Connector
  2. Authorization code flow
  3. Implicit flow

Let’s start this post with the API endpoint to list the flow runs for Azure Logic Apps & Power Automate. Find below the API endpoint for Azure Logic apps as per this documentation to list the Workflow Runs

Azure Logic Apps – List Workflow Runs:

GET

https://management.azure.com/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Logic/workflows/{workflowName}/runs?api-version=2016-06-01

Find below the API endpoint for Power Automate to list the flow runs, the URL was formed based on the above Azure Logic apps URL.

Power Automate – List flow Runs:

GET

https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/xxx-flow-env-guid-xxx/flows/xxx-flow-guid-xxx/runs?api-version=2016-11-01

You can easily notice the differences in the table below:

Azure Logic AppsPower Automate
https://management.azure.com/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/https://api.flow.microsoft.com/
providers/Microsoft.Logicproviders/Microsoft.ProcessSimple/environments/xxx-flow-env-guid-xxx
workflows/{workflowName}flows/xxx-flow-guid-xxx
runsruns
api-version=2016-06-01api-version=2016-11-01

The API version for Power Automate can be different in Microsoft 365 when compared against Azure Logic Apps. This information can be identified using fiddler or any browser-based developer tool (Network) by analyzing the http request traffic the portal makes to API endpoints for different operations after logging in to the Power Automate Portal. Find below screenshot regarding the API version on the home screen of the portal

As a first step towards accessing the API endpoint for Power Automate, there must be an Azure Active directory app registered in the AD tenant of the Microsoft 365 environment which has the Power Automate environment.

Azure Active Directory App Registration:

Register an application in Azure AD and obtain the client id, client secret & tenant id for the registered application. After the app is registered, follow the below steps to grant permission for the app to call the Power Automate Flow APIs:

  1. In the App, click the API permission under the Manage blade and then click + Add a permission. Under the Microsoft APIs tab, click Flow Service as shown below
  1. The flow API as of now supports only delegated permission (User Context). Now select the Permission based on the requirement. For this post, I have selected the permission Flows.Manage.All for listing the runs of the flow
  1. Add a Web Redirect URI https://global.consent.azure-apim.net/redirect as shown below to use the app in a custom connector

The app is registered with the necessary configurations, let us now see how to call the Power Automate API using a custom connector. The custom connector takes care of generating the authorization token required to access the API using the authorization code flow.

Custom Connector to call the Power Automate APIs:

A custom connector is a wrapper around a REST API (Logic Apps also supports SOAP APIs) that allows Logic Apps, Power Automate or Power Apps to communicate with that REST or SOAP API. In the Power Automate portal expand Data on the left panel > Custom connectors > + New custom connector > Create from blank

After entering the connector name, in the General information enter the description and Host name to api.flow.microsoft.com

Now click Security on the right bottom corner to enter the Azure AD application information for the OAuth 2.0 authentication type. Under the section OAuth 2.0

After the above information is filled in, click Create connector which autogenerates the Redirect URL https://global.consent.azure-apim.net/redirect. This is the URL we have added as a Redirect Web URI in the Azure AD application. The connector is now ready for the actions to list the flow Runs with the help of Power Automate REST API endpoint.

Action to List Flow Runs:

The Power Automate REST API endpoint to list the flow runs is

Http Request Mode: GET

Request URI: https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/{FlowEnvironment}/flows/{FlowGUID}/runs?api-version=2016-11-01

After the custom connector is created in the above step, now click the Definition tab of the Custom Connector > click + New action to enter Summary, Description & Operation ID of the action > Click + Import from sample to enter the above API endpoint to list the flow runs in URL box and Verb as GET > Click Import

Click Update connector. To the test the action, click Test at the bottom right corner. In the following screen, create a connection and then pass the parameters for Power Automate Environment, Flow GUID & API Version of the Power Automate REST API. Flow GUID & Environment ID can be obtained from any of your existing flow in the environment. To get these information navigate to the My Flows section in the Power Automate portal and click any flow, the information will be on the URL as shown on the below sample

Flow Details URL: https://emea.flow.microsoft.com/manage/environments/xxxx-flow-env-guid acb/flows/flow-guid-xxxx-xxxx-xxxxxxxxxxx/details

After entering the details, click Test operation to get the list of run details the flow had till now. You can get details like the status of the flow, flow start time & endtime, flow run id etc on the response

Copy the Response body from the above screen to add it to the default response for the action. Click the + Add default response on the action definition screen > Click + Import from sample > Paste the copied value to the Body section > Click Import.

The above step is recommended to parse the information of the response either in Power Automate or Power Apps. The sample Custom connector used for this blogpost can be downloaded from here.

Find below some REST API endpoints for different operations:

Get Flow Details:

HTTP Request Type: GET

URL: https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/{FlowEnvironment}/flows/{FlowGUID}?api-version=2016-11-01

Resubmit a flow run:

HTTP Request Type: POST

URL: https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/{FlowEnvironment}/flows/{FlowGUID}/triggers/manual/histories/{FlowRunID}/resubmit?api-version=2016-11-01

Cancel a flow run:

HTTP Request Type: POST

URL: https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/{FlowEnvironment}/flows/{FlowGUID}/runs/{FlowRunID}/cancel?api-version=2016-11-01

Turn On or Turn Off a Flow:

HTTP Request Type: POST

Turn Off URL: https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/ {FlowEnvironment}/flows/{FlowGUID}/stop?api-version=2016-11-01

Turn On URL: https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/ {FlowEnvironment}/flows/{FlowGUID}/start?api-version=2016-11-01

Add a Owner:

HTTP Request Type: POST

URL: https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/ {FlowEnvironment}/flows/{FlowGUID}?api-version=2016-11-01

Body:

{“put”:[{“name”:”userGUIDhere”,”properties”:{“principal”:{“id”:”userGUIDhere”,”displayName”:”userDisplayNamehere”,”email”:”userUPNhere”,”type”:”User”}}}]}

Delete a Flow:

HTTP Request Type: DELETE

Turn Off URL: https://api.flow.microsoft.com/providers/Microsoft.ProcessSimple/environments/ {FlowEnvironment}/flows/{FlowGUID}?api-version=2016-11-01

The above operations are just some samples, if you would to get the REST API endpoint details for different operations, go through the Logic Apps rest API documentation. You can also use Fiddler tool or browser developer tools to help you in finding the corresponding API endpoints after logging in to the Power Automate portal and then performing various operations within the portal interface.

Custom connector takes care of generating the token automatically to call the Power Automate REST APIs secured with OAuth but if you have to call these API programmatically in an application, you can use any one of the below authentication flows to generate the token.

Authorization code flow for token generation:

As the first step to generate the token using Authorization code flow, add the Redirect URI in the Azure Active directory app for your application. For this example, I have added http://localhost/ as a Redirect URI for the Web platform as shown below

Make the above change on the Azure AD application which was registered initially in this post to access Power Automate REST API. Construct the following URL after replacing the tenantId and azureAppId to generate the code in any browser for generating a token

https://login.microsoftonline.com/tenantId/oauth2/authorize?
client_id=azureAppId
&response_type=code
&redirect_uri=http://localhost/
&scope=https://service.flow.microsoft.com//.default

After the above URL is accessed in the browser, you will be prompted to sign-in. Once the sign-in is complete, a code will be generated in the below format on the browser address bar as a response to the sign-in

http://localhost/?code=0.xxxxxxxxxxxxxxxxAA&session_state=88f349ba-63e3-4064-b9c9-992ba6c5606c#

The code can be used to redeem for an access token. Make the following HTTP request to generate the access token after replacing the tenantId on the request URL

Request Type: POST

Request URL: https://login.microsoftonline.com/{tenantId}/oauth2/v2.0/token

Body:

client_id= azureAppId
&scope=https://service.flow.microsoft.com//.default
&code=0.xxxxxxxxxxxxxxxxAA
&redirect_uri=http://localhost/
&grant_type=authorization_code
&client_secret=appClientSecret

Replace the AzureAppId, code value copied from the above request and the appClientSecret.

Headers:

Key: Content-Type

Value: application/x-www-form-urlencoded

Find screenshot below for the Postman request

The generated token can be used to access different Power Automate REST API endpoints based on the permissions you have consented to the Azure AD application by passing the token on the Authorization header as Bearer.

Reference for the error message I was receiving while working this flow “Access token has been obtained from wrong audience”: https://github.com/AzureAD/microsoft-authentication-library-for-js/issues/1735

Implicit flow for token generation:

To generate a token using implicit flow, enable the following setting on the Azure Active directory app

Construct the following URL after replacing the tenantId and azureAppId to generate the access token directly in any browser

https://login.microsoftonline.com/tenantId/oauth2/v2.0/authorize?
client_id=azureAppId
&response_type=token
&redirect_uri=http://localhost/
&scope=https://service.flow.microsoft.com//.default

Or

https://login.microsoftonline.com/common/oauth2/authorize?resource=https://service.flow.microsoft.com/&response_type=token&client_id=azureAppId&redirect_uri=http://localhost/

After any of the above URL is accessed in the browser, you will be prompted to sign-in. Once the sign-in is complete, access token will be generated in the below format on the browser address bar as a response to the sign-in

http://localhost/#access_token=exxxxxxxxxxxxx&token_type=Bearer&expires_in=3599&scope=https://service.flow.microsoft.com//Flows.Manage.All https://service.flow.microsoft.com//User https://service.flow.microsoft.com//.default&session_state=88f349ba-63e3-4064-b9c9-992ba6c5606c

Microsoft recommends Authorization code flow than the implicit flow.

Refer to the following blog posts for more information on accessing an API with delegated permissions

Also go through this documentation from Microsoft which has information of the different types of connectors to automate tasks with Power Automate.

Summary: On this post we have seen how to use Power Automate REST API to manage your cloud flows. These APIs works for both individual flows (My Flows) and flows which is part of the solutions. Power Automate REST APIs are very powerful to manage your cloud flows. I can think of scenario where in you can resubmit all your failed flows programmatically leveraging these API endpoints. Microsoft has documented WEB API for Power Automate flows included in solutions. If you are visiting my blog for the first time, please do look at my other blogposts.
