Secure Your MCP Server with Service Principal Authentication for Copilot Studio

In my previous post, we explored how to secure an MCP Server using Microsoft Entra ID delegated permissions, where the user’s identity is passed through to the API.

Secure Your MCP Server with Entra ID Authentication for Copilot Studio

But what if your scenario does not require user context?

What if you want:

• A centralized connection
• No per-user sign-in prompts
• A backend service-to-service integration

In this post, we’ll walk through how to secure an MCP Server using application permissions (service principal authentication) and integrate it with Copilot Studio.

Introduction

MCP Servers exposed to Copilot Studio can be secured using different OAuth patterns:

• Delegated permissions → user context
• Application permissions → app-only context

This post focuses on the application permission model, where:

• Copilot Studio uses a service principal (client credentials flow)
• MCP Server validates app tokens instead of user tokens
• No user interaction is required at runtime

Why Use Application Permissions?

Delegated access is great when you need user context. But in many enterprise scenarios:

• Background operations don’t need user identity
• Shared tools should behave consistently
• Managing per-user connections becomes overhead

With application permissions:

• Authentication is centralized
• No per-user connection creation
• Better suited for automation and shared agents

Prerequisites

Before starting:

• Access to Microsoft Entra ID
• Access to Copilot Studio and Power Platform
• MCP Server implementation (you can reuse the same repo)
• Permissions to create app registrations and custom connectors

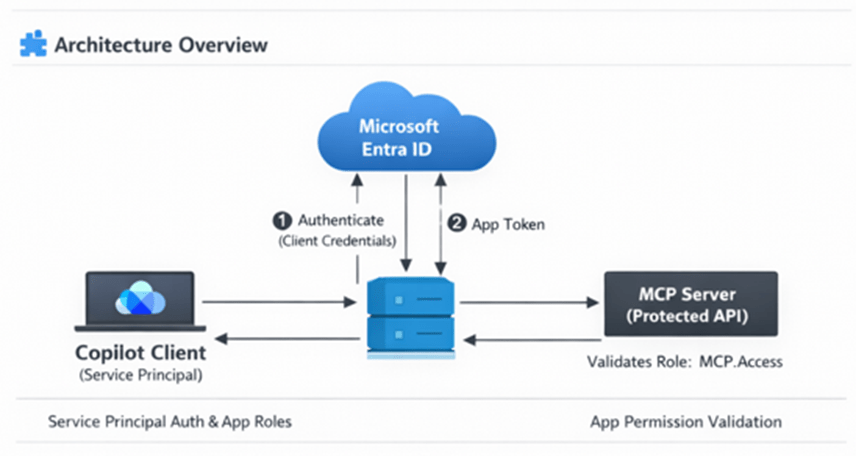

Architecture Overview

In this setup:

• MCP Server → Protected API (App roles enabled)
• Copilot Client → Service principal (client credentials flow)
• Entra ID → Issues app-only tokens

Flow:

1. Copilot (via connector) authenticates using service principal
2. Entra ID issues app-only token
3. Token is sent to MCP Server
4. MCP Server validates role-based access

Step 1: Update MCP Server App Registration (Resource API)

Go to your existing MCP Server app registration created from the instructions in my other post.

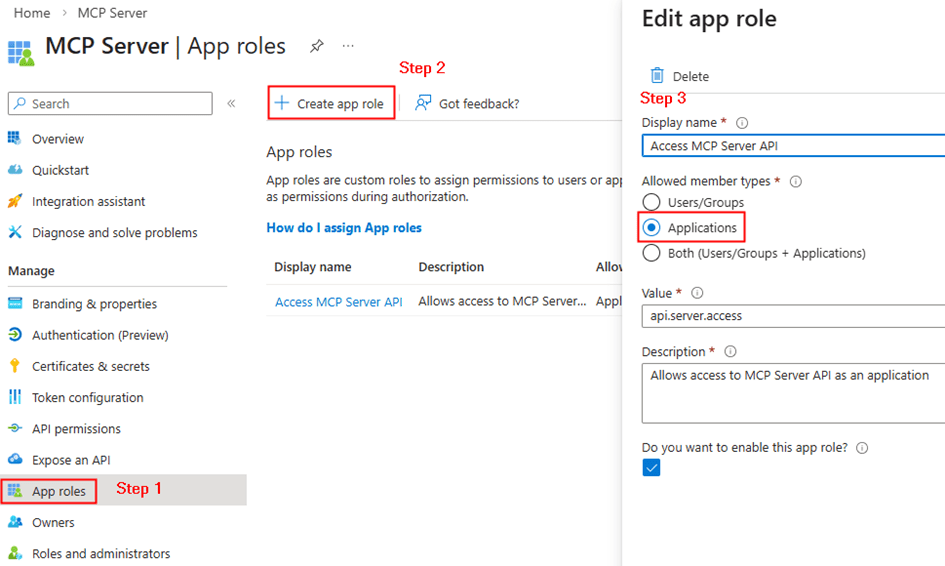

Create App Roles

Navigate to App roles → Add new role:

• Display name: Access MCP Server API
• Allowed member types: Applications
• Value: api.server.access
• Description: Allows access to MCP Server as an application

This is the key difference from delegated setup.

Instead of scopes, we have defined app roles for applications. Copy the resource url from the api permissions. E.g: api//xxxxx-xxxx-xxxx-xxx

Step 2: Configure Copilot Client App (Service Principal)

Go to your second app registration (Copilot client).

Add Application Permission

• API permissions → Add permission
• My APIs → Select MCP Server app
• Choose Application permission → api.server.access

Grant Admin Consent

This allows the client app to call MCP Server without a user

Copy the client id, client secret for entering in the security tab while creating the custom connector.

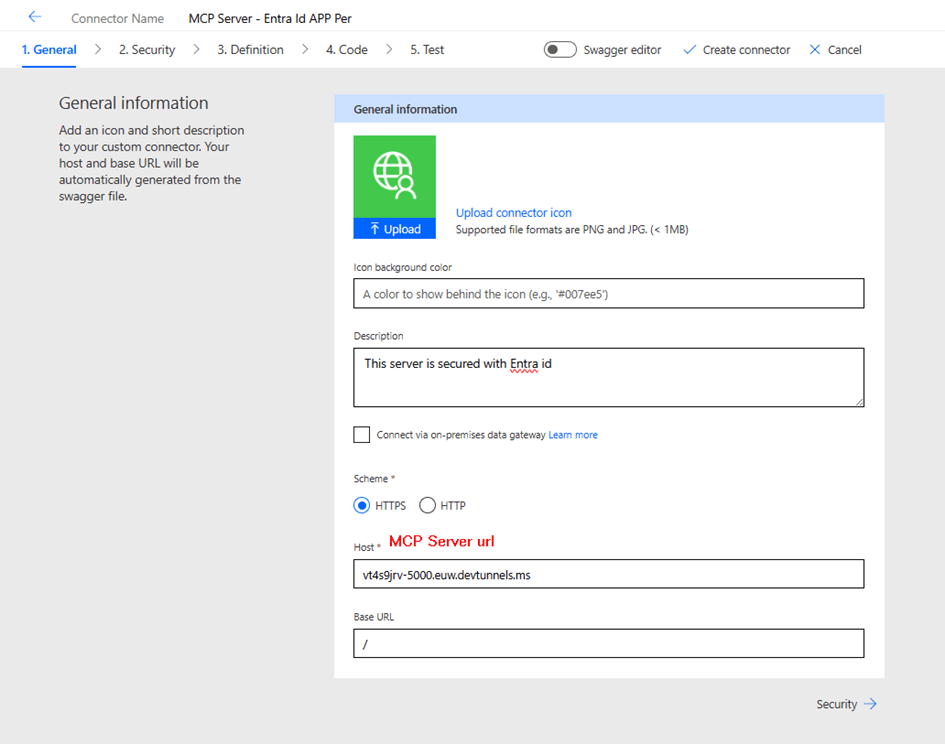

Step 3: Create Custom Connector in Power Platform

Unlike the delegated setup, this time we do not add MCP Server directly from Copilot Studio.

Instead:

• Go to make.powerapps.com
• Create a Custom Connector

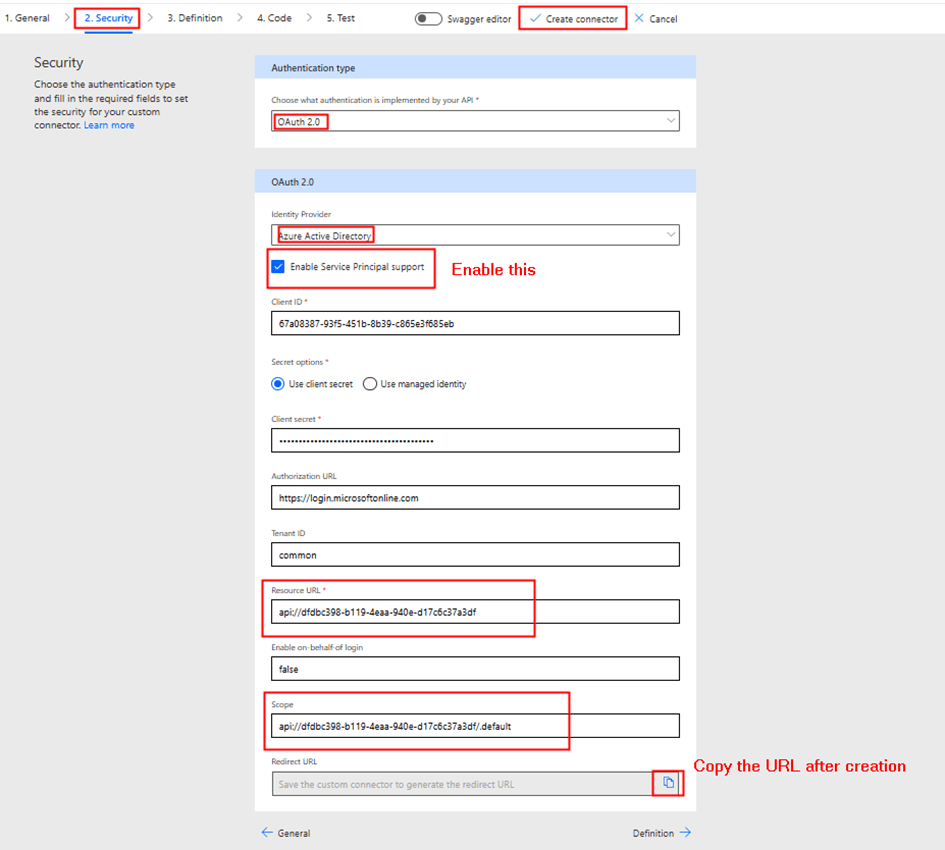

• Configure:
  • Security → OAuth 2.0
    1. Enable Service Principal support

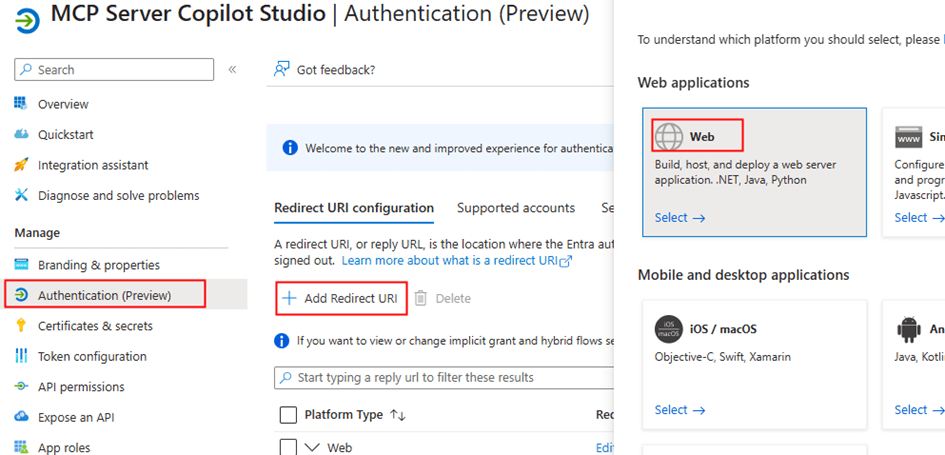

This connector uses the service principal credentials. After the entering the above details, click create connector. After the connector is created, copy the redirect URL to enter it in the Copilot studio client app registration

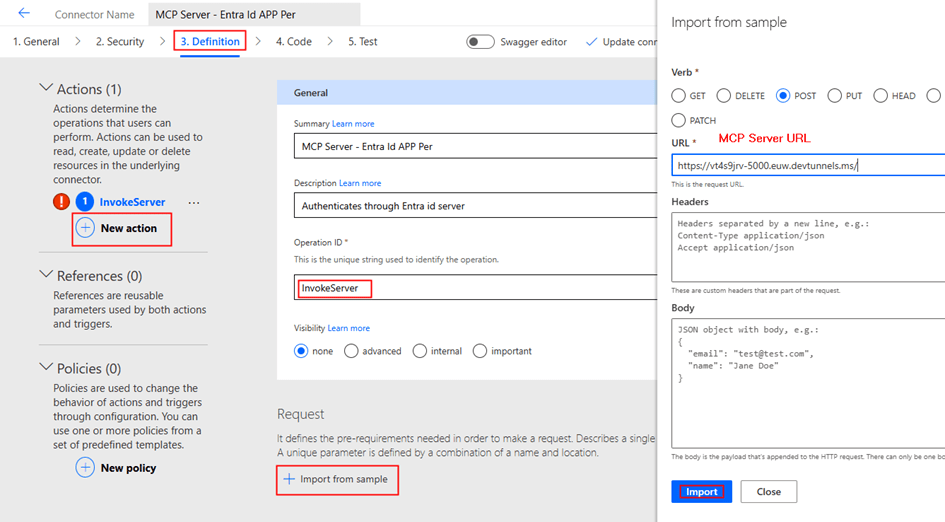

Now we can add the action Invoke server as below

Update the connector. Now Toggle Swagger editor to add x-ms-agentic-protocol: mcp-streamable-1.0 as shown below

What It Does

Declares MCP Server Compatibility with Power Platform Agents

This extension tells Power Platform (and AI agents like Copilot) that your connector:

Component	Meaning
x-ms-	Microsoft-specific extension (not standard OpenAPI)
agentic-protocol	Indicates the API supports agentic/AI agent operations
mcp-streamable-1.0	Uses Model Context Protocol v1.0 with streaming support

What This Enables

1. Agentic Discovery – Agents can discover available tools/operations
2. Streaming Responses – Support for long-running async operations with streaming results
3. Native MCP Integration – Direct compatibility with MCP clients and servers
4. Agent Invocation – AI agents can invoke your MCP server endpoints intelligently

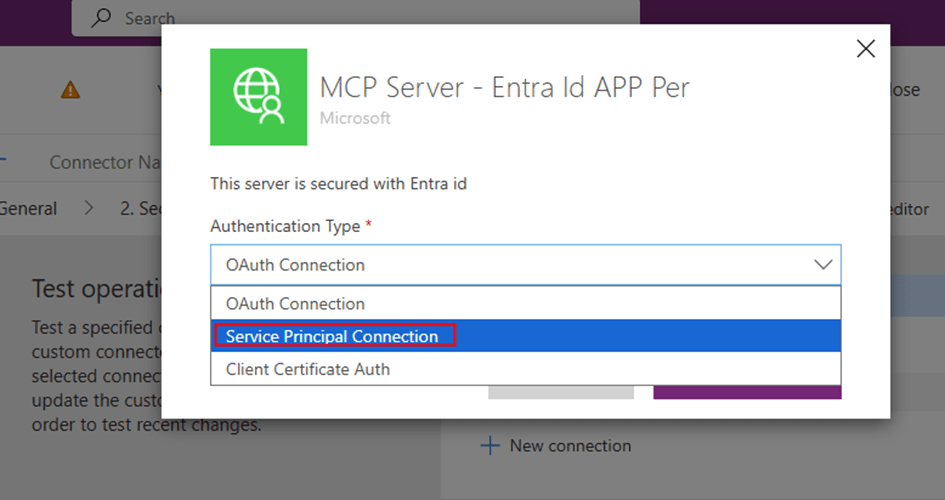

Step 4: Create Connection Using Service Principal

After updating the connector:

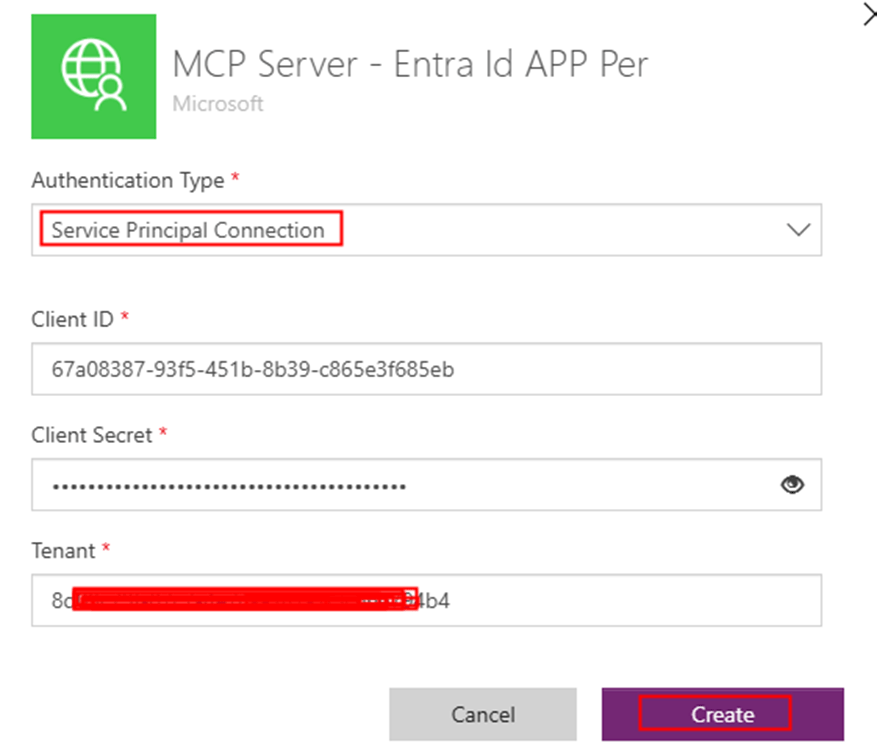

• Create a new connection from the Test Tab in custom connector creation interface

• Provide the below from your Copilot studio client app registration:
  • Client ID
  • Client Secret
  • Tenant ID

This creates a shared connection

Key difference:

• No user login prompt
• Connection is tied to service principal, not individuals

Step 5: Add MCP Server to Copilot Studio

Now go to Copilot Studio:

• Open your agent

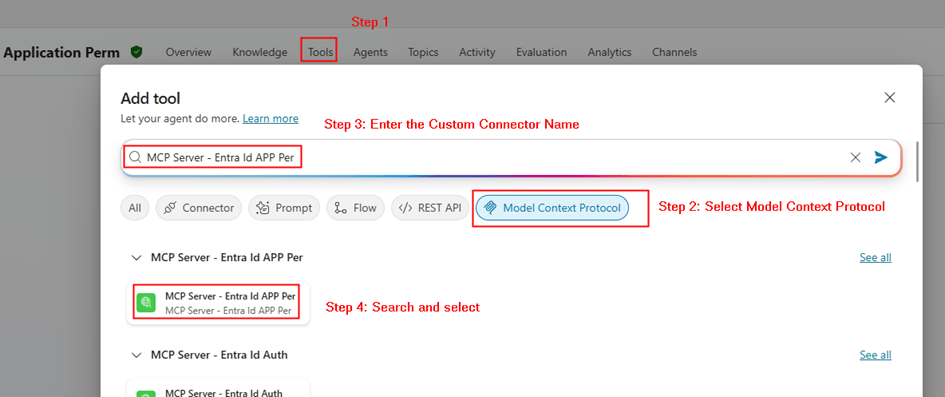

• Add Tool → Browse existing MCP Servers

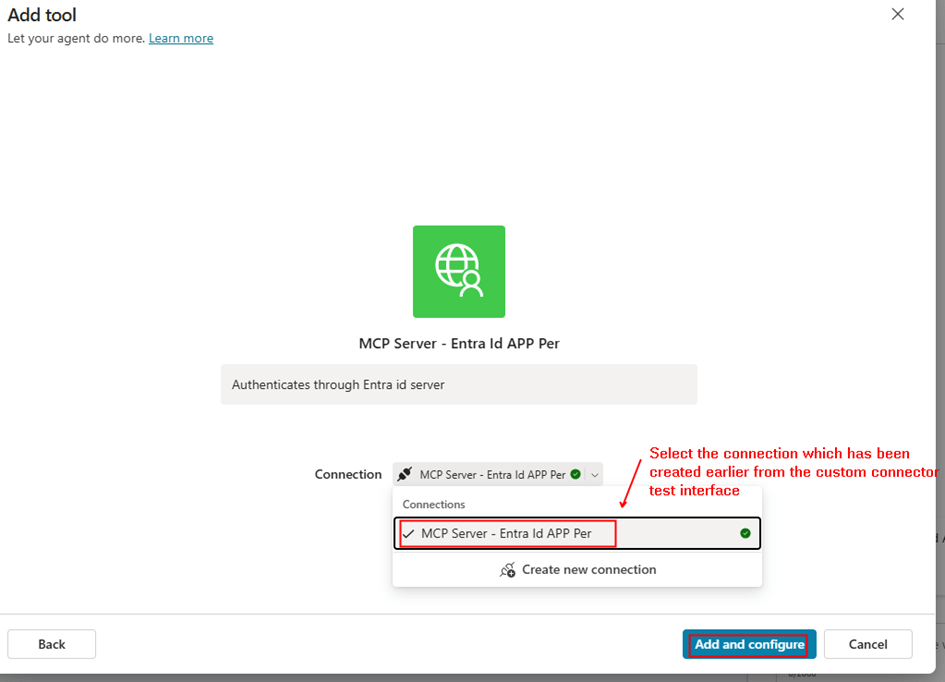

• Select your MCP connector and the connection as below

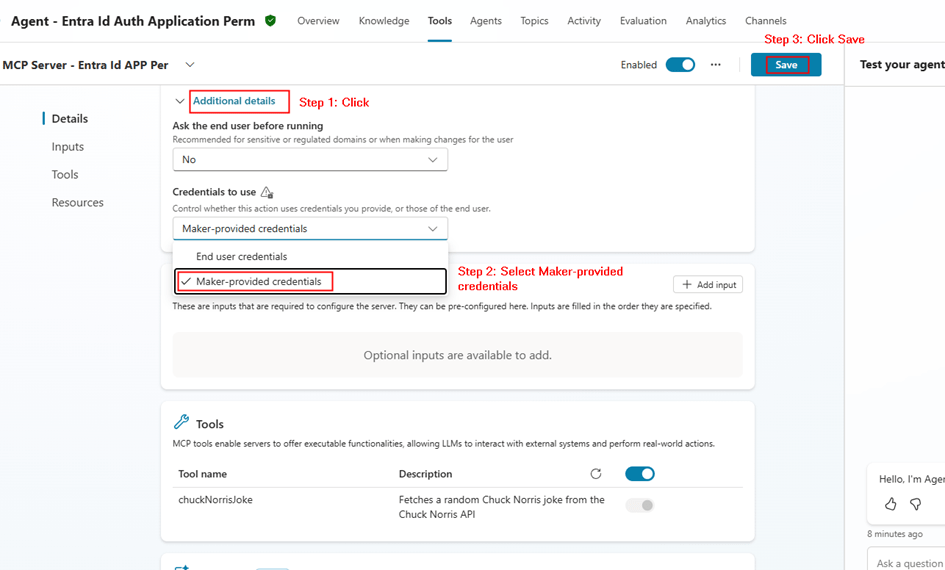

Important configuration in Copilot studio after the tool/MCP server is added:

• Credentials to use: Maker provided

• Save

This ensures:

• The agent always uses the same connection
• No per-user authentication required

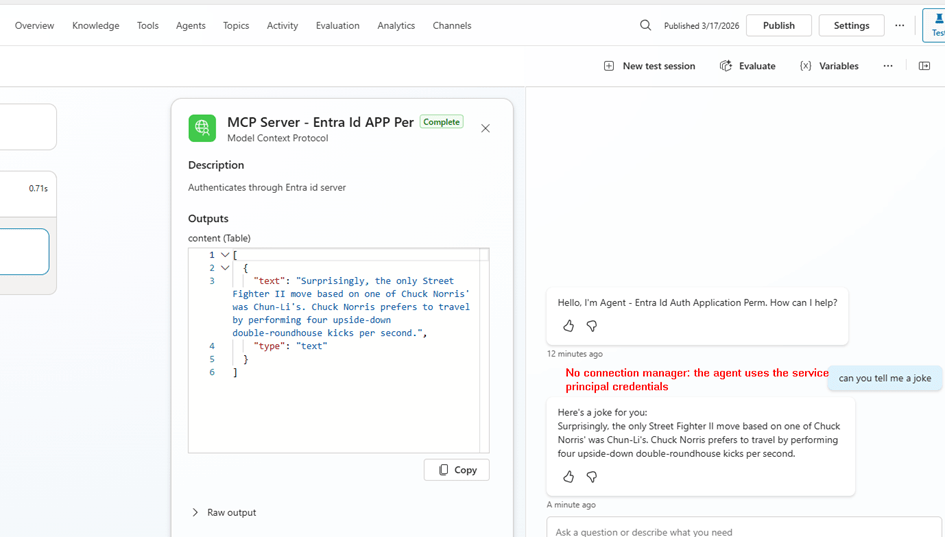

Step 6: Test the MCP Agent

Now test your agent:

• Invoke MCP tool
• Verify response

You should see:

• No login prompts
• Consistent responses
• Backend authentication working

Delegated vs Application Permissions

Feature	Delegated	Application
Identity	User	App
Token Type	User token	App token
Consent	User/Admin	Admin only
Connection	Per user	Shared
Use Case	User-specific data	Background/shared APIs

Summary

In this post, we covered:

• Securing MCP Server using application permissions
• Creating app roles for application access
• Assigning application permissions to client app
• Creating custom connector in Power Platform
• Using service principal connection
• Adding MCP server to Copilot Studio via existing connector
• Configuring maker-provided authentication

Why This Matters

Using application permissions is critical when:

• You want centralized authentication
• Your MCP tools don’t require user context
• You want to avoid connection sprawl
• You need consistent behavior across all users

This model is especially useful for:

• Enterprise APIs
• Shared automation tools
• Backend integrations

Final Thoughts

Both delegated and application permission models have their place.

• Use delegated when user identity matters
• Use application permissions when it doesn’t

By implementing service principal authentication for your MCP Server, you enable:

• Scalable architecture
• Simplified connection management
• Secure, app-driven integrations with Copilot Studio
